An automotive smoke machine is a vital tool for mechanics and car enthusiasts alike. It helps identify leaks in various vehicle systems such as the intake, exhaust, and vacuum, ensuring optimal performance and preventing long-term damage. By using non-toxic smoke, this device reveals hidden leaks in your car’s complex systems, making it an essential part of vehicle diagnostics. In this guide, we will cover how these machines work, their applications, and the benefits of using them, providing all the details you need to effectively utilize this diagnostic tool.
What is an Automotive Smoke Machine?
An automotive smoke machine is a tool used to identify leaks and faults in different vehicle systems, including the intake, exhaust, fuel, and vacuum systems. The machine generates non-toxic smoke, which is introduced into the vehicle’s system for testing. The smoke leaks out through any holes, cracks, or faulty seals, making it easy for the technician to locate the problem.
Types of Automotive Smoke Machines
Various types of smoke machines are available on the market, each tailored to serve specific purposes. Below are the primary categories:
- Basic Smoke Machines
- Designed for entry-level or DIY use.
- Usually have fewer features and a simpler design.
- Affordable and ideal for smaller car repair shops.
- Designed for entry-level or DIY use.
- Portable Smoke Machines
- Lightweight and designed for ease of use in mobile service environments.
- Often come with rechargeable batteries, making them ideal for on-the-go diagnostics.
- Lightweight and designed for ease of use in mobile service environments.
- Professional-Grade Smoke Machines
- High-end models designed for automotive professionals.
- Feature advanced features such as adjustable smoke flow, larger capacity tanks, and enhanced leak detection capabilities.
- Often come with a wide range of adapters and accessories for multiple applications.
- High-end models designed for automotive professionals.
- Integrated Smoke Machines
- Built into diagnostic systems or multifunctional automotive testing tools.
- Allow for more comprehensive vehicle testing.
- Built into diagnostic systems or multifunctional automotive testing tools.
How Does an Automotive Smoke Machine Work?
Basic Components of a Smoke Machine
An Smoke diagnostic machine consists of several components that work together to create the smoke and apply it to the system being tested:
- Smoke Generation System: A heating element that vaporizes a specially designed fluid to produce visible smoke.
- Pressure Regulator: This ensures that the smoke is delivered at a consistent pressure, suitable for the system being tested.
- Hoses and Adapters: Various attachments to connect the smoke machine to different vehicle systems.
- Power Source: The machine is powered by a 12V DC source, typically connected to the car’s battery.
Working Process
- Preparation: Identify the part of the car that needs testing—whether it’s the intake manifold, exhaust system, or fuel system.
- Connection: Connect the suitable hose or adapter to the area you wish to test.
- Activation: Power on the smoke machine, and it will start generating smoke.
- Leak Detection: Watch for smoke escaping through any leaks, cracks, or holes in the vehicle’s system.
- Repair: Once the leaks are identified, make the necessary repairs and re-test to ensure everything is sealed properly.
Applications of Automotive Smoke Machines
1. Intake System Leaks
The intake system in a car is responsible for pulling in the air required for the combustion process. Leaks in the intake manifold or air intake system can lead to poor engine performance, rough idling, and a drop in fuel efficiency. A smoke machine makes it easy to detect these leaks, which might otherwise be invisible.
2. Exhaust System Leaks
Exhaust leaks can lead to several issues, including reduced engine performance, increased emissions, and excessive noise. Traditional methods of detecting exhaust leaks often involve guesswork or trial and error. With a smoke machine, leaks in exhaust pipes, manifolds, or gaskets become immediately visible.
3. Fuel System Leaks
Leaks in the fuel system are highly dangerous, potentially causing fuel loss that is both unsafe and wasteful. A smoke machine can help pinpoint tiny leaks in the fuel lines, fuel injectors, or fuel tank. Ensuring these systems are intact is crucial for the safety and efficiency of your vehicle.
4. EVAP System Leaks
The EVAP system prevents fuel vapors from being released into the atmosphere. A leak in the EVAP system can lead to reduced engine performance, illuminate the Check Engine light, and raise emission levels. A smoke machine is an effective tool to identify leaks in the EVAP system, saving you both money and time.
5. Vacuum System Leaks
Vacuum leaks can lead to unstable engine performance, including stalling, rough idling, and poor acceleration. These issues are often difficult to detect without a smoke machine, as the leaks can be very small. By using a smoke machine, technicians can locate vacuum leaks quickly and accurately.
Benefits of Using an Automotive Smoke Machine
1. Precision Diagnostics
- Automotive smoke machines allow for pinpoint accuracy when detecting leaks, which means that you can identify problems before they turn into major repairs.
2. Time-Saving
- Traditional leak detection methods can be time-consuming and often require dismantling parts of the car. Smoke machines speed up the diagnostic process, making it more efficient.
3. Cost-Effective
- Detecting leaks early prevents bigger issues down the road, saving you money on costly repairs. Additionally, it reduces the likelihood of having to replace large vehicle parts unnecessarily.
4. Enhanced Vehicle Performance
- By addressing leaks quickly, you help your car run more efficiently, improving fuel economy and engine performance.
5. Improves Customer Satisfaction
- For automotive shops, using a smoke machine improves the speed and quality of service, leading to higher customer satisfaction and trust.
How to Use an Automotive Smoke Machine
Step-by-Step Process
- Preparation:
- Ensure the smoke machine is properly filled with the appropriate smoke fluid.
- Collect the required adapters to connect the machine to the vehicle.
- Ensure the smoke machine is properly filled with the appropriate smoke fluid.
- Connection:
- Connect the smoke machine hose to the vehicle’s system being tested, whether it’s the intake, exhaust, or EVAP system.
- Connect the smoke machine hose to the vehicle’s system being tested, whether it’s the intake, exhaust, or EVAP system.
- Activation:
- Power on the smoke machine. The smoke generator will begin producing smoke, which will travel through the vehicle’s system.
- Power on the smoke machine. The smoke generator will begin producing smoke, which will travel through the vehicle’s system.
- Leak Detection:
- Check for visible smoke escaping from any cracks, holes, or damaged seals. The escaping smoke will highlight the problem area.
- Check for visible smoke escaping from any cracks, holes, or damaged seals. The escaping smoke will highlight the problem area.
- Repair:
- Once the leak is identified, proceed with the necessary repairs, such as replacing seals, gaskets, or hoses.
- Once the leak is identified, proceed with the necessary repairs, such as replacing seals, gaskets, or hoses.
- Test Again:
- After completing the repairs, use the smoke machine again to confirm that all leaks are fully sealed.
- After completing the repairs, use the smoke machine again to confirm that all leaks are fully sealed.
Choosing the Right Automotive Smoke Machine
Selecting the right automotive smoke machine can depend on several factors. Here are some key considerations:
1. Vehicle Type
- Some smoke machines are more suited for specific vehicle types (e.g., passenger cars, trucks, or heavy-duty vehicles). Make sure the machine you choose is compatible with the systems you need to test.
2. Budget
- Smoke machines are available in a wide range, from affordable models to premium versions with advanced features. Choose one that fits your budget and meets your diagnostic needs.
3. Features
- Look for features such as adjustable smoke flow, portability, ease of use, and a variety of adapters to ensure the machine meets all your requirements.
4. Brand Reputation
- Opt for reputable brands that are known for producing high-quality smoke machines. Reading customer reviews and ratings can help guide your decision.
5. Warranty and Support
- Always check if the smoke machine comes with a warranty and customer support. A reliable warranty provides reassurance and helps protect your investment.
Top Automotive Smoke Machines on the Market
| Brand | Model | Price Range | Features | Rating |
| Smoke Wizard | Smoke Wizard Pro | $200-$500 | Adjustable flow, high-quality smoke output | 4.5/5 |

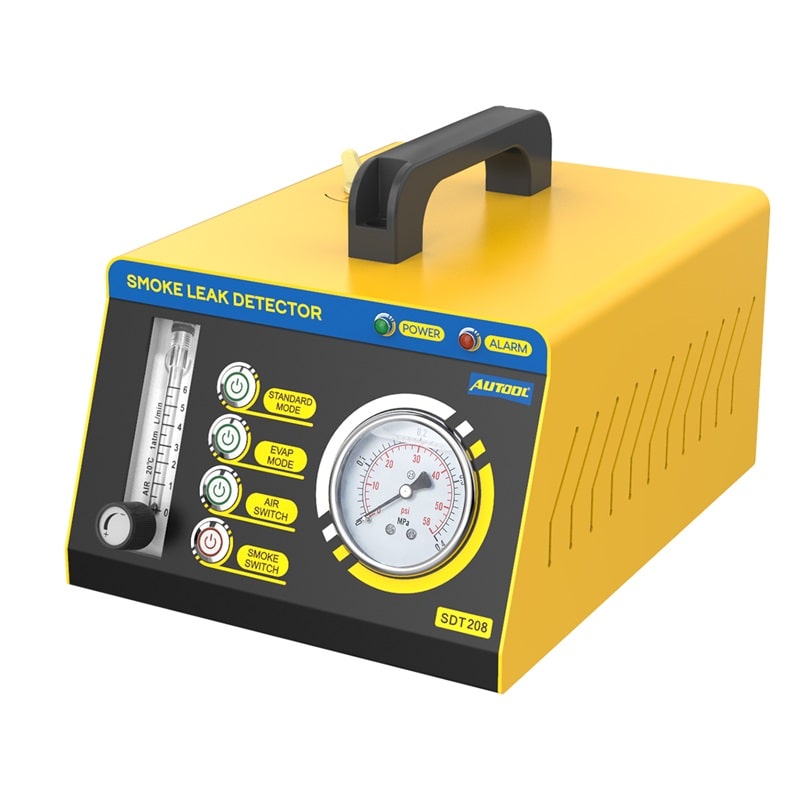

| Autool | Autool Smoke Machine | $150-$300 | Portable, easy-to-use, EVAP system testing | 4/5 |
| Redline Detection | SmokePro TotalTech | $700-$1200 | Fast leak detection, professional-grade | 5/5 |
| Vivid Smoke | Vivid Automotive Smoke | $100-$250 | Compact, lightweight, budget-friendly | 3.5/5 |
Common Issues Fixed Using an Automotive Smoke Machine
1. Vacuum Leaks
- A frequent cause of rough idling, sluggish acceleration, and engine stalling. The smoke machine helps locate vacuum hose leaks quickly.
2. Intake Leaks
- Leaks in the intake manifold can result in engine misfires, poor fuel economy, and other performance issues.
3. Exhaust Leaks
- Exhaust leaks can diminish engine performance and lead to increased harmful emissions. The smoke machine can pinpoint these leaks effectively.
4. EVAP System Leaks
- Leaks in the EVAP system can cause the Check Engine light to illuminate. The smoke machine is the ideal tool for detecting these leaks.
5. Fuel System Leaks
- A smoke machine is ideal for detecting fuel system leaks that may lead to fuel loss or pose a fire hazard.
Troubleshooting Tips for Smoke Machines
- No Smoke: Check if the fluid tank is empty or if the fluid is incompatible. Always ensure the fluid is designed for automotive smoke machines.
- Leak Detection Issues: If smoke isn’t escaping from the vehicle system, check the hose connection or verify that the smoke machine’s pressure settings are correct.
- Incorrect Flow Rate: Adjust the smoke machine’s flow rate to match the specific vehicle system.
FAQs About Automotive Smoke Machines
1. Can I use a smoke machine to find electrical leaks?
- No, smoke machines are designed for detecting leaks in air, fuel, and exhaust systems, not electrical issues.
2. How frequently should I use an automotive smoke machine?
- It is typically used when leaks are suspected or as part of routine vehicle maintenance.
3. Are smoke machines safe to use?
- Yes, the smoke is non-toxic and safe, but you should always follow the manufacturer’s instructions for safe use.
4. Can I use a smoke machine for all car brands?
- Most smoke machines are compatible with various car brands, but it’s always best to check the product details before purchase.
Conclusion
An automotive smoke machine is an essential tool for anyone engaged in vehicle maintenance. Whether you are a professional mechanic or an enthusiast, using a smoke machine can save time, money, and effort by pinpointing leaks that would otherwise go undetected. By understanding how these machines work, their applications, and their benefits, you’ll be well-equipped to use them effectively and enhance your car repair experience.
If you’re in the market for an automotive smoke machine, ensure you choose one that suits your needs and budget, and always prioritize quality to ensure reliable and accurate diagnostics for your vehicle.
